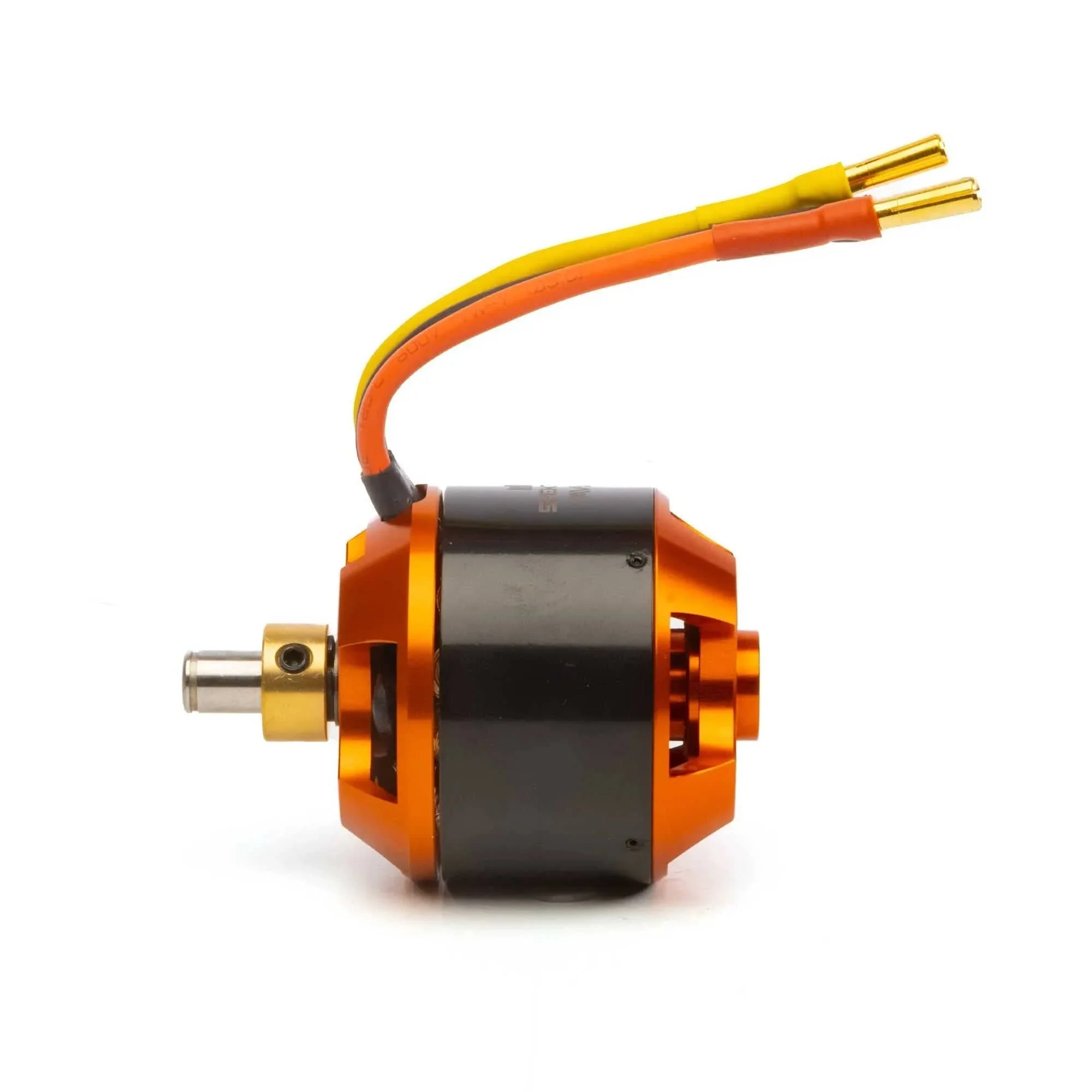

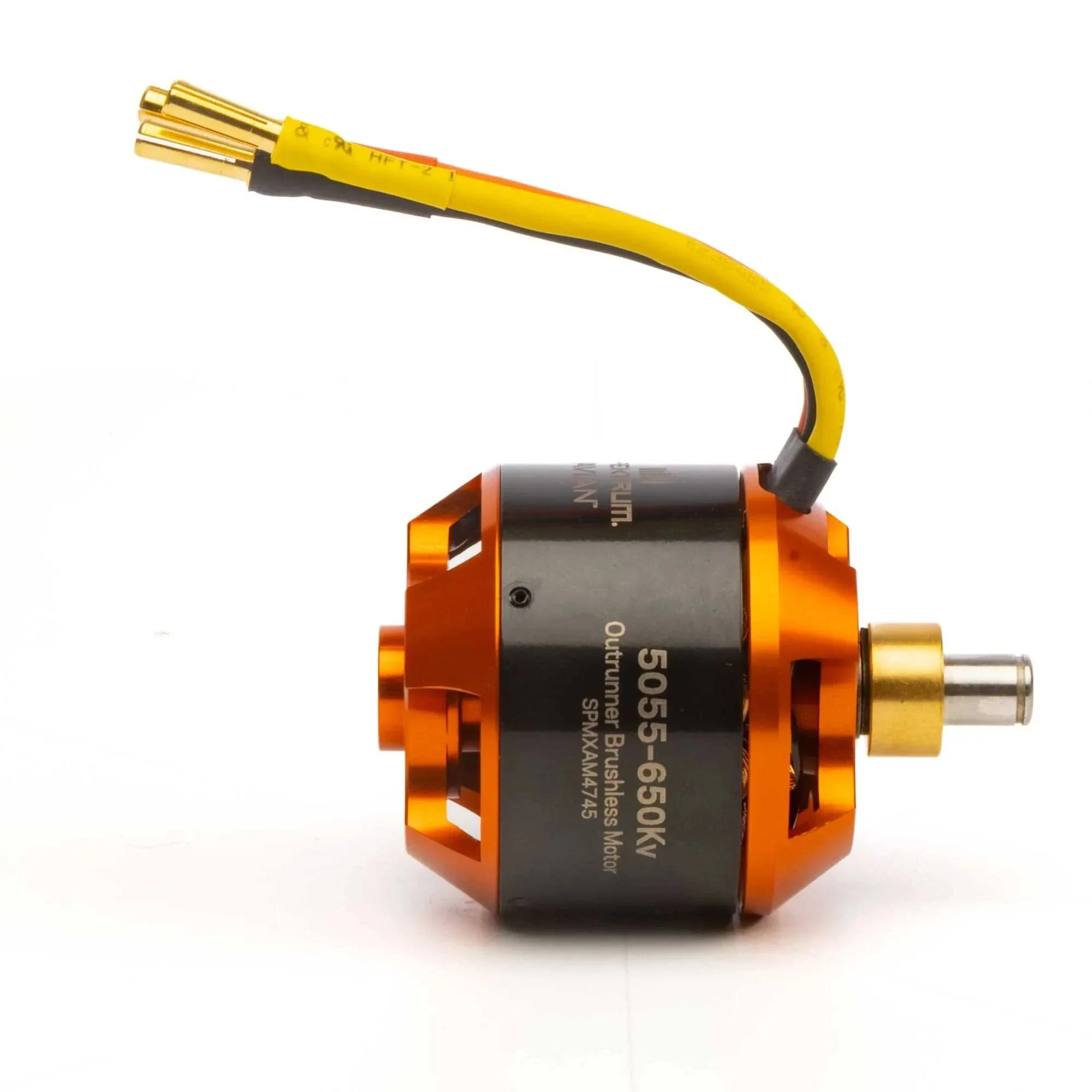

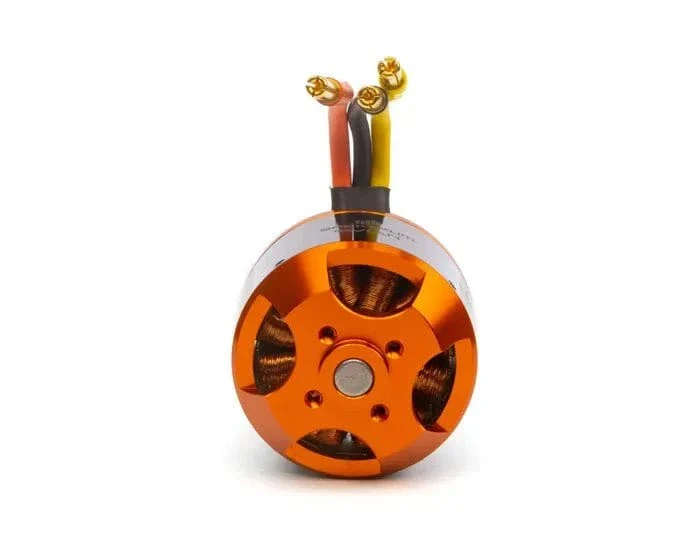

Spektrum Avian 5055-650Kv .60 Equivalent Brushless Outrunner Motor
This is a Spektrum Avian 5055-650Kv .60 Equivalent Brushless Outrunner Motor
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminium motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 60 amp ESC
- Perfect electric conversion upgrade for 60 size glow combustion power systems
Specs
Maximum Continuous Current65A
Recommended Prop Range12x6 - 13x4E
RPM/Volt (Kv)650
Connector Type 4mm
Bullet Shaft Diameter0.32" (8 mm)
Product Weight10.5
Product Length2.17" (55 mm)
Maximum Burst Current2200 Watts
Motor Type Brushless
Input Voltage18.5-22.2V (5-6S LiPo)
Shaft Length0.79" (20 mm)
Recommended Voltage Range18.5 - 22.2V / 5-6S LiPo
Recommended Model Flying weight3D 2950g (6.5 lbs) - Sport 4705g (10.5 lbs)
Max Wattage900w
Max Current
Max Burst Amps (85A) Max Continuous Amps (60A)
